Entry Level aVS

The entry-level aVS provides two bi-directional SDI ports with genlock in a 1U chassis and offers 2 TB of internal mirrored storage.

Product Code: AQVS32041DE0
Item: aQ Video Server, gen3, Hybrid, 1U, two-port SD/HD, SDI, entry-level, 2 TB (software mirror)
Description:
aVS, third generation system
Two-port SD/HD video server with single PSU in a 1U chassis.
Each port individually configurable as recorder or player, with SDI connections (including embedded audio). Both ports share a single sync/genlock input, supporting black/burst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format.
Storage: internal HDDs providing approximately 2 TB usable storage in a software mirrored configuration.
On-board VGA, 1GigE NIC
Firmware: aQ v4 firmware installed.
1U, 437 x 503 x 43 mm (17.2" x 19.8" x 1.7"), rack rails included.
Not included: power cord, keyboard, mouse, monitor, network cable.

Hardware details:

  • 1U Chassis
  • Depth: approx. 51 cm
  • Weight: approx 10 Kg
  • Single PSU

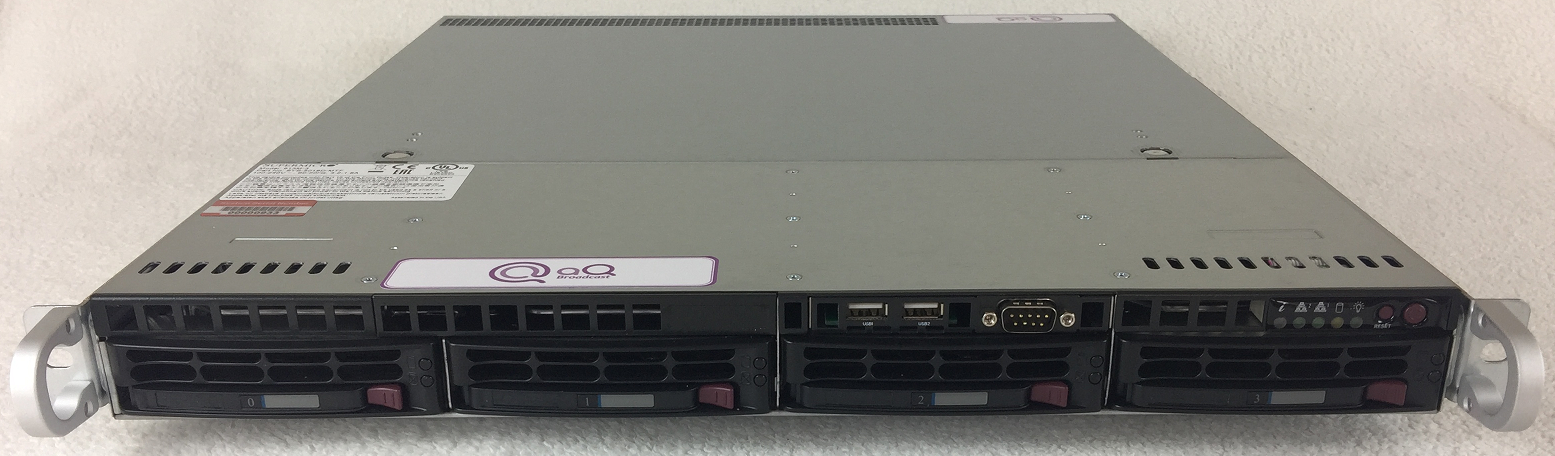

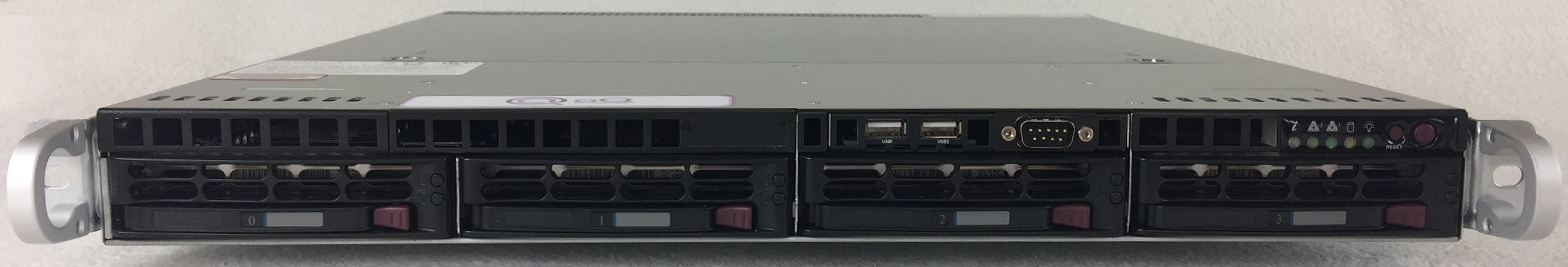

  • Front indicators: Power, Hard drive activity, 2 x Network activity, System overheat
  • Front connections: 2 x USB, 1 x RS232 serial

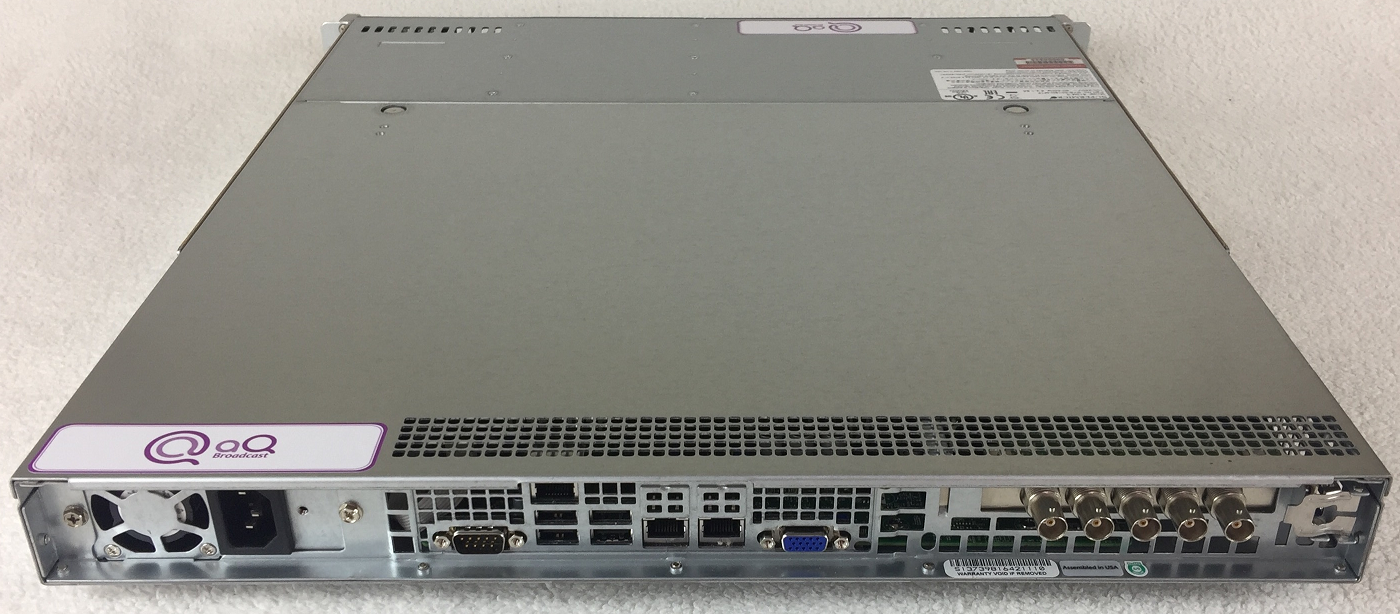

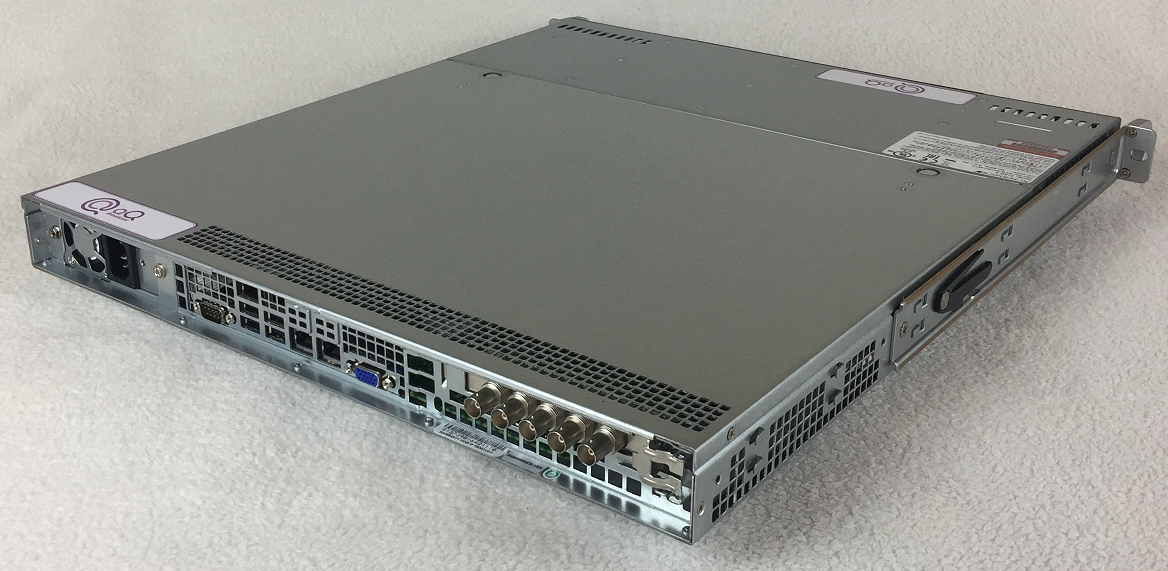

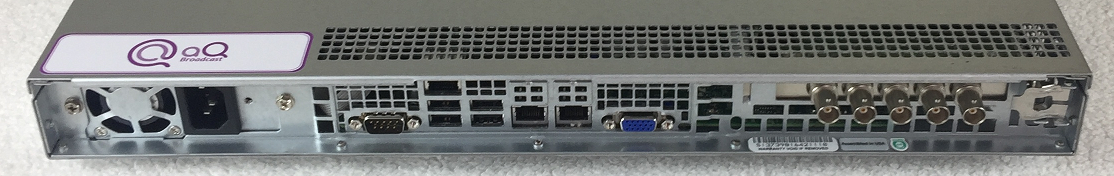

  • Rear connections: 4 x USB, 2 x 1GigE NIC, 1 x VGA, 1 x RS232 serial
  • AV I/O: 1 x shared genlock input, Port 1 Input, Port 1 Output, Port 2 Input, Port 2 Output
  • Four 1 TB HDD, rated for continuous operation, in removable (but not hot-swappable) caddies
  • Hard drive configuration: two drives for OS (mirrored), two drives for media volume (mirrored)
  • Power supply: 440W/480W High-Efficiency Power Supply (certification 80 Plus Platinum)
  • AC input:100-140V, 50-60Hz, 5.5-4A /180-240V, 50-60Hz, 3.5-2.5A
  • Power Supply Safety / EMC: USA - UL listed, FCC | Canada - CUL listed |Europe/CE Mark | EN 60950/IEC 60950-Compliant
  • Internal cooling: 4 x 4cm high-performance fans
  • Temperature range: 5°C ~ 35°C (41°F ~ 95°F) [operating] / -40°C ~ 60°C (-40°F ~ 140°F) [storage]
  • Humidity range: 8% ~ 90% (non-condensing) [operating] / 5% - 95% (non-condensing) [storage]

What's in the box:

  • aVS (1U chassis)

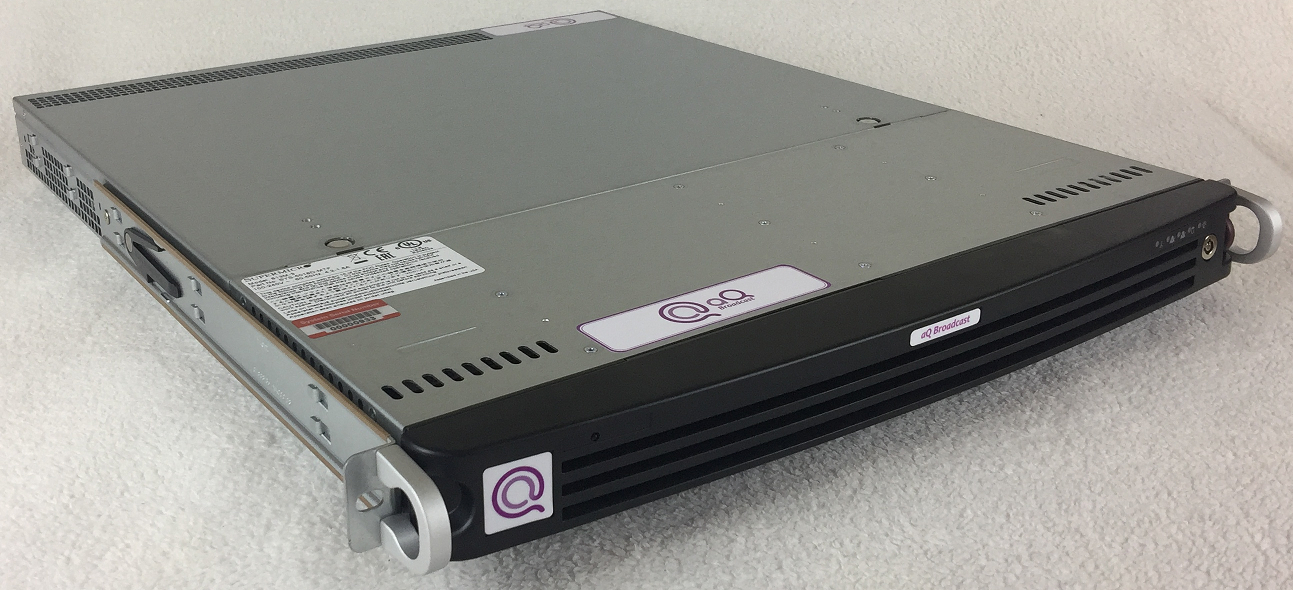

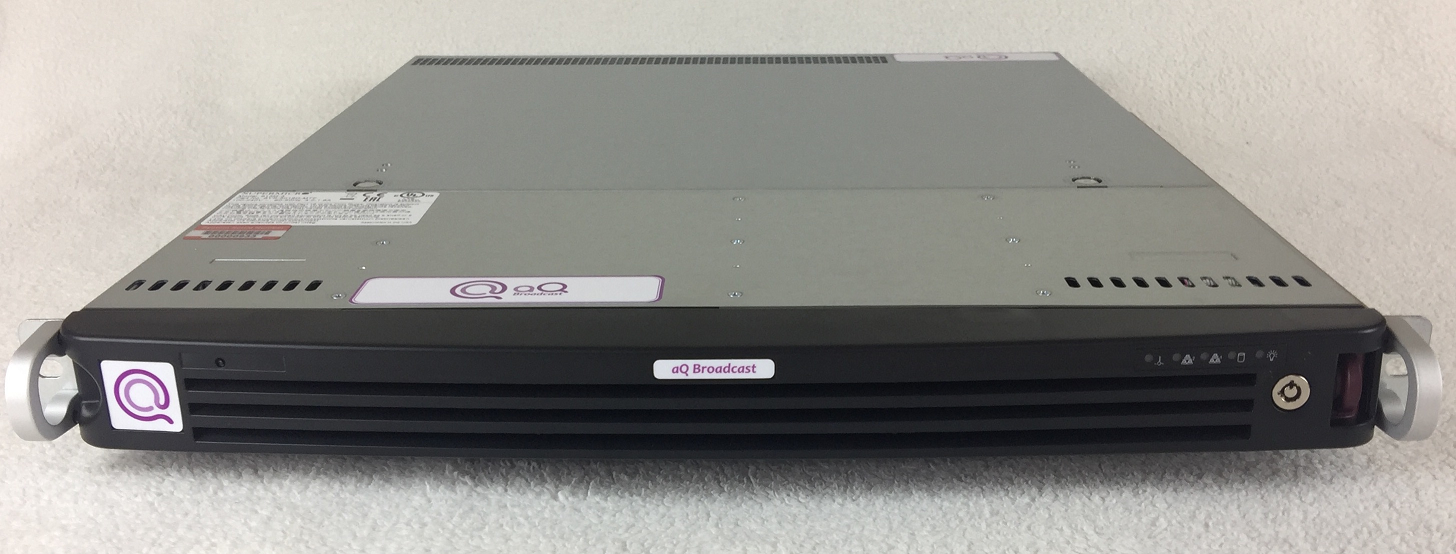

  • Removable front bezel
  • pair of rack rails
  • aQ v4 firmware pre-installed
  • Packaging 23.4" (W) x 8.5" (H) x 29.7" (L)

What's not included:

  • power cord
  • keyboard, mouse, monitor
  • network cable(s)
