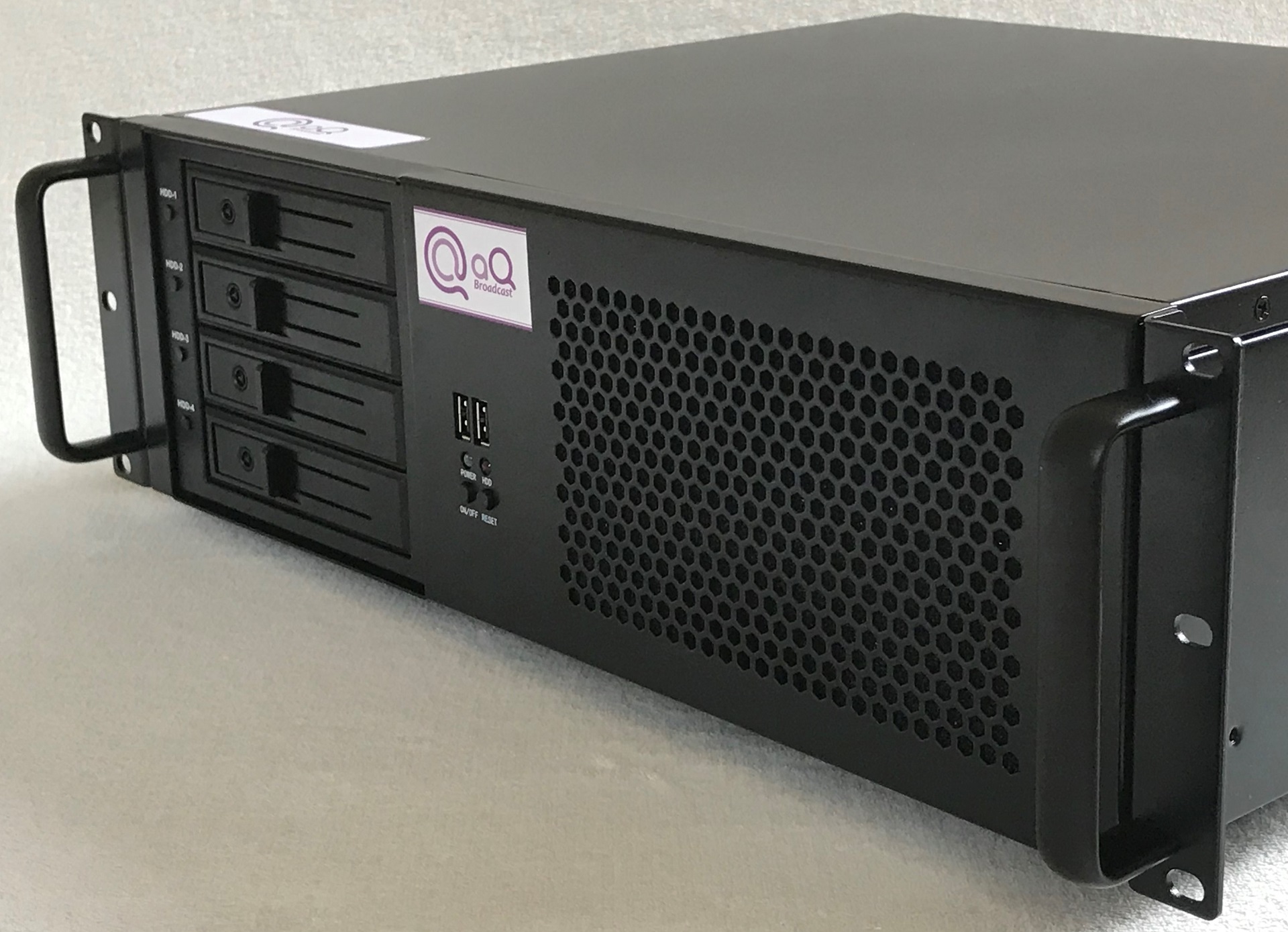

Entry Level (3U) aVS

This Entry-Level aVS provides two or four bi-directional SDI ports with genlock in a 3U chassis with single or redundant power supplies and offers at least 2 TB (usable) of storage protected by a software RAID array.

Product Code: AQVS32041DE3 (two-port / 2 TB usable version) - other configurations are available
Item: aQ Video Server, gen3, Hybrid, 3U, two-port SD/HD, SDI, entry-level, 2 TB (software RAID), single PSU (other configurations available)
Description:
aVS, third generation system
Two-port SD/HD video server with single PSU in a 3U chassis.
Each port individually configurable as recorder or player, with SDI input & SDI output (with embedded audio). Ports provided as a pair, with shared genlock input.
Storage: four removable (but not hot-swappable) HDD providing approximately 2 TB usable storage in a software RAID configuration.
On-board VGA, 1GigE NIC
Firmware: aQ v4/5 firmware installed
3U, 482 (wide) x 430 (deep) x 130 (high) mm, approximate weight 12 Kg (fully installed, excluding rack rails)
Rack rails included.
Not included: power cord, keyboard, mouse, monitor, network cable.

Hardware details:

  • 3U Chassis
  • Depth: approx. 43 cm
  • Weight: approx 12 Kg
  • Single PSU
  • Front indicators: Power, Hard drive activity
  • Front buttons: power on/off, system reset
  • Rear connections: 2 x USB 2.0, 2 x USB 3.0, 2 x 1GigE NIC, 1 x VGA, 1 x RS232 serial (exact configuration may vary, especially NICs)
  • AV I/O (bottom to top):
    • 1 x shared genlock input, Port 1 Input, Port 1 Output, Port 2 Input, Port 2 Output
  • Four 1 TB HDD, rated for NAS operation, in removable (but not hot-swappable) caddies
  • Hard drive configuration: software RAID
  • Power supply: 500W High-Efficiency Power Supply (certification 80 Plus Platinum)
  • AC input:200-240V, 47-63Hz, 5A (alternate versions available for different markets)
  • Internal cooling: 4 x 6/8cm fans

What's in the box:

  • pair of rack rails
  • aQ v4/5 firmware pre-installed

What's not included:

  • power cord
  • keyboard, mouse, monitor
  • network / AV cables

All specifications and images subject to change without notice. A wide range of options and configurations are available, so this information can only be provided as representative of one particular model.
